NAMM 2020: IK Multimedia Z-TONE Buffer Boost i Z-TONE DI

0

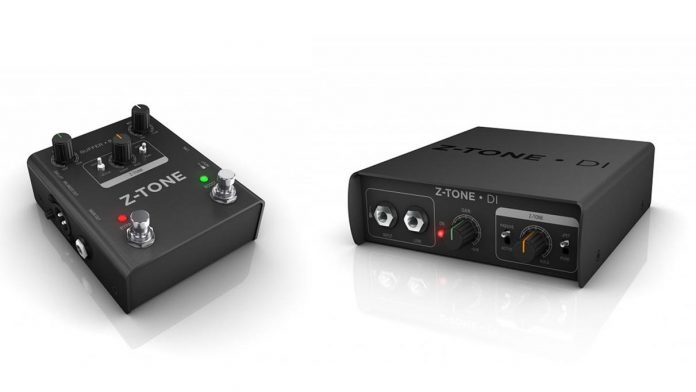

Zawsze jest jakiś wybór… Dla tych, którzy nie potrzebują rozbudowanych instalacji, firma IK Multimedia zaprezentowała dwa nowe urządzenia – preampy Z-TONE Buffer Boost w formie stompboxa oraz Z-TONE DI.

IK Multimedia Z-TONE Buffer Boost i Z-TONE DI to urządzenia, które świetnie współpracują z całą masą urządzeń potrzebnych gitarzystom i basistom.
Już niebawem szerzej przedstawimy nowe urządzenia. Tymczasem mamy dla Was ich pełne specyfikacje.

IK Multimedia Z-TONE Buffer Boost

  • I/O Gain: Unitary, from 1/4” input JACK to both 1/4” and XLR outputs when GAIN is at 0dB and Z-TONE at the SHARP position.
  • Gain Range: From -8dB to +8dB
  • Boost range: From 0dB to +10dB
  • Input impedance – Z-TONE set on PASSIVE mode: Variable from 1MΩ down to 2.2kΩ
  • Input impedance – Z-TONE set on ACTIVE mode: Approx 20kΩ
  • Output impedance, unbalanced out: 56Ω
  • Output impedance, balanced out: 600Ω
  • Max input level before clipping: +13dBm when powered by 48V phantom,+9dBm when powered by 9V battery
  • Dynamic Range: better than 114dB(A) for both outputs, input gain at 0dB
  • Total Harmonic Distortion, balanced output, 1kHz, +4dBm input: 0.0033% (PURE), 0.2% (JFET)
  • Total Harmonic Distortion, unbalanced output, 1kHz, +4dBm input: 0.00055% (PURE), 0.2% (JFET)
  • Frequency response: from 5Hz to 30kHz -1dB
  • Phase deviation: 0° +/-10° from 20Hz to 20kHz
  • Phantom power: +48V phantom on Balanced output.
  • Battery power: 9V
  • External DC power: 9VDC, positive outside – not included
  • Current consumption from P48 phantom power source: 6.5mA

IK Multimedia Z-TONE DI

  • I/O Gain: Unitary, from 1/4” input JACK to both 1/4” and XLR outputs when GAIN is at 0dB and Z-TONE at the SHARP position.
  • Gain Range: From -8dB to +8dB
  • Input impedance – Z-TONE set on PASSIVE mode: Variable from 1MΩ down to 2.2kΩ
  • Input impedance – Z-TONE set on ACTIVE mode: Approx 20kΩ
  • Output impedance, unbalanced out: 56Ω
  • Output impedance, balanced out: 600Ω
  • Max input level before clipping: +13dBm when powered by 48V phantom,+9dBm when powered by 9V battery
  • PAD: -20dB
  • Dynamic Range: better than 114dB(A) for both outputs, input gain at 0dB
  • Total Harmonic Distortion, balanced output, 1kHz, +4dBm input: 0.0033% (PURE), 0.2% (JFET)
  • Total Harmonic Distortion, unbalanced output, 1kHz, +4dBm input: 0.00055% (PURE), 0.2% (JFET)
  • Frequency response: from 5Hz to 30kHz -1dB
  • Phase deviation: 0° +/-10° from 20Hz to 20kHz
  • Phantom power: +48V phantom on Balanced output.
  • Battery power: 9V
  • Current consumption from P48 phantom power source: 6.5mA

Więcej szczegółów
Producent: https://www.ikmultimedia.com
Dystrybutor: https://audiostacja.pl
